Introduction
In the rapidly evolving photovoltaic (PV) industry, the integrity of a solar installation is not solely determined by panel efficiency, but equally by the reliability of its mounting structure. For asphalt shingle roofs-the most prevalent roofing material in North America-the flashing plate serves as the indispensable linchpin for system longevity. As a specialized manufacturer, Longsun Green emphasizes that the interface between the roof penetration and the mounting hardware is the primary vulnerability in any rooftop solar array. This article provides a comprehensive analysis of solar flashing technology, exploring its structural mechanics, functional principles, operational scenarios, and material advantages.
1. Structural Anatomy and Mechanical Design
The solar flashing unit is engineered as a multi-layered protective barrier. Typically manufactured from high-grade aluminum (AL6005-T5) or galvanized steel, its design features a stepped or sloped geometry that integrates seamlessly beneath standard asphalt shingles.

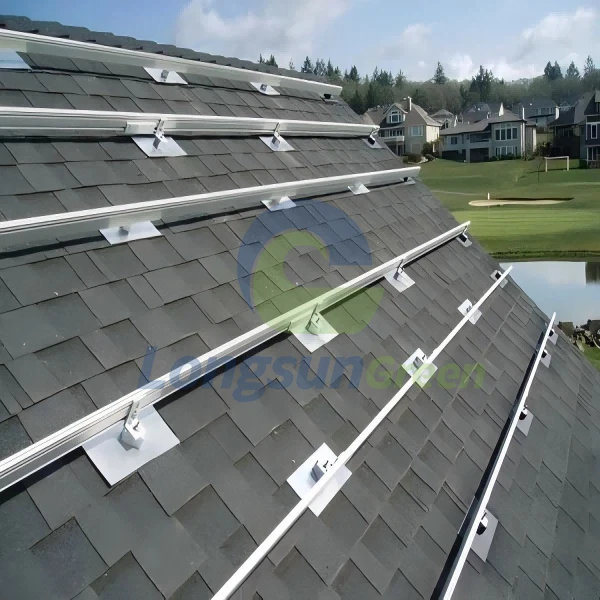

The L-Foot Interface: The flashing plate is often paired with an L-shaped bracket. This configuration creates a stable, perpendicular anchor point for the rail system while distributing the dynamic loads (wind uplift and snow weight) across a wider surface area of the roof deck.
The Pre-formed Channel: High-quality flashings incorporate raised ribs and channels. These are not merely for rigidity; they act as a drainage pathway, directing incidental moisture away from the penetration point.
Sealing Mechanisms: The integration of an EPDM (Ethylene Propylene Diene Monomer) rubber washer beneath the lag bolt is critical. This component undergoes compression to create a watertight seal that accommodates the thermal expansion and contraction of the roof materials.
2. Functional Principles: Beyond Simple Waterproofing
The primary function of the flashing is to intercept and redirect water. However, the engineering principles involved are far more sophisticated:
Gravity and Capillary Action: The flashing is installed with a downward slope matching the roof pitch. By utilizing gravity, it prevents water from flowing backward (uphill) under the shingle. The leading edge of the flashing is designed to break surface tension, preventing capillary action from drawing water into the bolted connection.
Thermal Stress Management: Asphalt shingles expand and contract with temperature fluctuations. The flashing assembly is designed to "float" slightly relative to the L-foot, allowing for micro-movements without compromising the seal. This reduces the risk of fatigue cracking in the sealant over a 25-year lifespan.
Load Distribution: The broad base of the flashing acts as a load-spreading device. In high-wind events (up to 60m/s), the lifting force on the solar panel is transferred down through the L-foot and spread across the flashing's surface, preventing the lag bolt from tearing through the shingle or decking.
3. Application Scenarios and Versatility
While specifically designed for asphalt shingles (strip shingles, dimensional shingles), this mounting solution demonstrates high adaptability:
Residential Pitched Roofs: Ideal for single-family homes where aesthetic integration and roof integrity are paramount.
Commercial Low-Slope Roofs: For roofs with a minimum pitch, the flashing can be angled to ensure proper drainage.
Seismic Zones: The flexibility of the L-foot and flashing combination provides a degree of dynamic shock absorption, making it suitable for regions prone to seismic activity.
Retrofit Projects: For existing roofs, this method minimizes disturbance to the existing waterproof membrane, extending the overall lifespan of the roof structure.
4. Material Science and Product Advantages
Longsun Green employs specific material grades to optimize performance:
Aluminum AL6005-T5: Chosen for its exceptional strength-to-weight ratio and inherent corrosion resistance. Unlike steel, it does not require additional coating for rust prevention, ensuring compatibility with the chemical composition of asphalt.
SUS 304 Stainless Steel Hardware: All bolts, washers, and set screws are manufactured from austenitic stainless steel. This eliminates galvanic corrosion between dissimilar metals (aluminum and steel) and guarantees long-term thread integrity.
"H" and "L" Configurations: The availability of different bracket geometries allows engineers to customize the offset distance, ensuring the rail system is properly aligned even when the flashing is positioned off-center relative to the rafter.
5. Research Significance and Long-Term Performance
Recent studies on mounting failures indicate that 80% of rooftop solar leaks originate from improper flashing installation, not the panels themselves. The design of the Longsun Green Flashing kit addresses this by offering a "bolt-through" system that provides positive mechanical attachment. The 10-year warranty and 25-year lifespan is not arbitrary; it is based on accelerated aging tests (UV exposure and thermal cycling) that simulate decades of environmental stress. The product's compliance with international standards (AS/NZS 1170.2, UL1565, and DIN 1055) validates its structural integrity under global building codes.
6. Success Case Study: Coastal Residential Project
Project Scale: 15kW solar array installed on a coastal home in Florida.
Challenge: High saline environment and frequent hurricane warnings required a corrosion-proof and high-wind solution.
Solution: The Longsun Green Aluminum Asphalt Shingle Flashing L Foot Kit was utilized.
Outcome: The installation withstood a Category 3 hurricane (sustained winds of 185 km/h) without any water ingress or structural loosening. The client reported a 30% reduction in installation time due to the pre-assembled component design and easy alignment features.
Conclusion
The humble flashing plate is the unsung hero of the solar mounting industry. It represents a convergence of fluid dynamics, structural engineering, and material science. By prioritizing high-grade materials and precision engineering, Longsun Green ensures that the foundation of your solar array is as durable as the modules themselves. Investing in a quality flashing system is not an expense; it is an insurance policy against the elements.
For more technical specifications or to discuss your project requirements, please contact our engineering team.
