Products Description

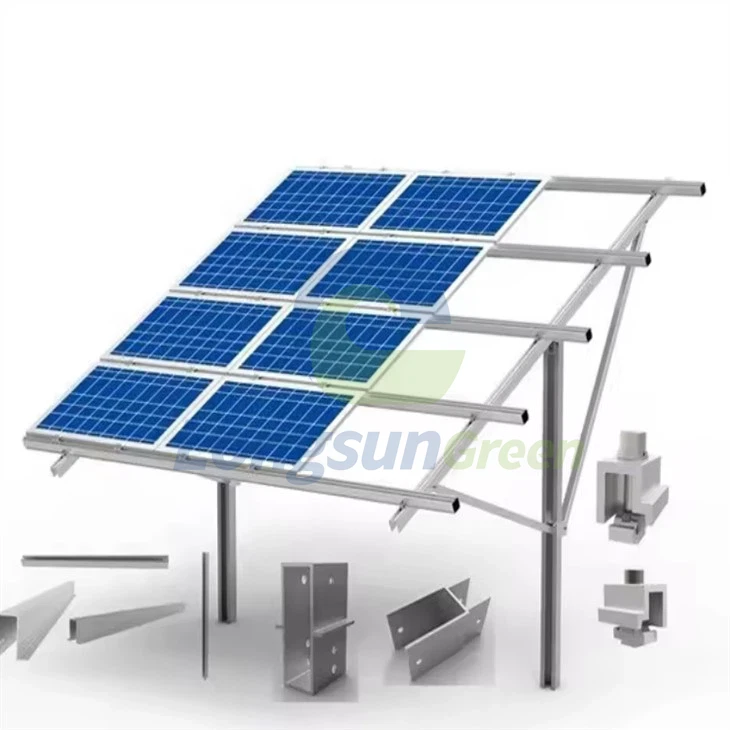

Ground Mounting Systems for solar pv plants
LongsunGreen Ground Mounting Systems are heavy-duty support structures for utility and commercial solar projects. Available in hot-dip galvanized steel or aluminum. Fully customizable for terrain, climate, and local codes. 100% in-house production with full traceability ensures quality and on-time delivery.
More details please contact Amber at amber@longsungreen.com
System Type Expansion
|
System Type |
Features |
Applications |
|
Fixed-Tilt System |
Tilt angle set by latitude (±5°), simple structure, low maintenance |
Open flat areas such as deserts and grasslands |
|
Agrivoltaic System |
Clearance ≥0.8m, 20–30cm spacing between modules for light transmission, allows farming underneath |
Regions with limited arable land |
|
Solar Carport System |
Shading + power generation integrated, wind-resistant up to 12, customizable height |
Parking lots, commercial areas, residential communities |
Foundation Type Comparison
|
Foundation Type |
Advantages |
Suitable Conditions |
|
Helical Piles |
Fast installation, eco-friendly, recyclable, no concrete required |
Flat soft-soil areas |
|
Driven Piles |
High load capacity, adapts to complex terrain |
Rocky or sloped ground |
|
Concrete Foundations |
Extremely stable, highly durable |
Large open sites |
|
Ballasted Foundations |
Zero ground penetration, simple installation |
Areas where deep excavation is not allowed |
Product List
Versatile Anchoring: Compatible with driven piles, pre-drilled piles, concrete, screw foundations, and ballasted blocks. Works on flat, sloped, or uneven ground.
Durable Materials: Steel grades S235JR, S275JR, S355JR per EN 10025-2:2004. Galvanization meets UNE-EN/ISO 1461, 14713, and UNE-EN1179. 25-year rust protection.
Quick Installation: Modular pre-assembled design reduces labor and tooling needs. Speeds up project timelines.
Custom Engineering: Tailored structural calculations for wind, snow, and seismic loads. Optimized for strength and material efficiency.
Full Traceability: End-to-end production control from raw steel to finished product. ISO-compliant quality assurance.
Engineering & Design Advantages
Ground-Level Maintenance Convenience
No rooftop access required. Cleaning, inspection, and component replacement can all be performed at ground level, reducing O&M costs.
All-Terrain Adaptability
Supports terrain slopes of up to 30% north-south and 20% east-west.
Optimized Structural Design
Strategic purlin and bracing arrangement allows for longer column spans, reducing the number of foundations and lowering overall material costs.
Multiple Column Lengths
Available in 10.5ft, 12.5ft, and 15ft lengths to accommodate various embedment depth requirements.
Pre-Assembled Delivery
Factory pre-assembly reduces on-site installation time and minimizes human error.
FAQ
01.What terrain slopes can the system accommodate?
02.What is the required embedment depth for helical piles?
03.Is the system compatible with bifacial modules?
Company Profile
in one-stop service
ISO 9001 Quality Management System Certified
CE Certified
Hot-dip galvanized steel & Aluminum structures:
15-year warranty
25+ year design life, matching PV module lifecycle
MW+
Project References
Single-post PV project, United States
Sunroom PV project, Europe
Roof-mounted PV project, Australia
Agricultural PV project, Japan
Agriculture PV mount, Austrian
Carport mounting structures, Europe
Ground mount structure, Southeast Asia
Ground-mounted solar racking, Italy
