Products Description

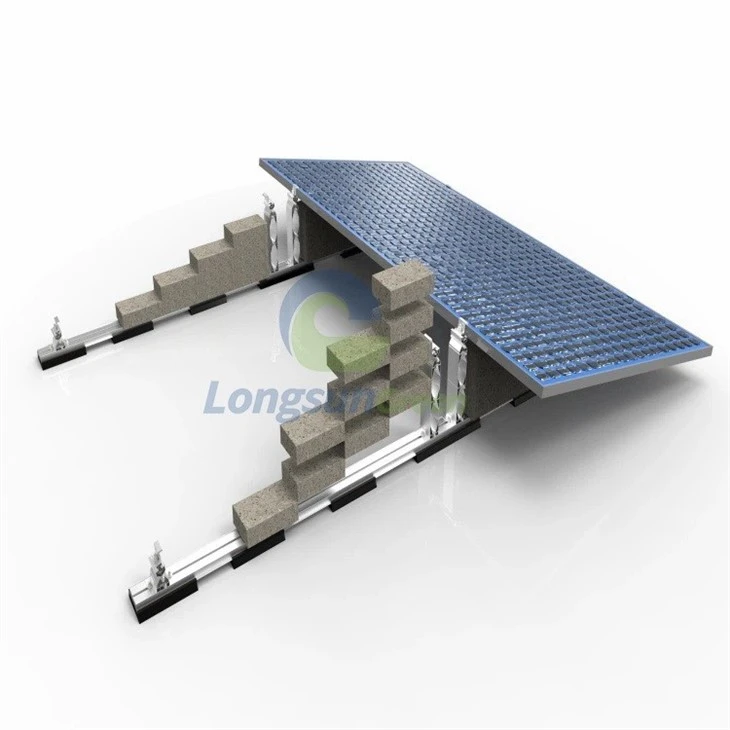

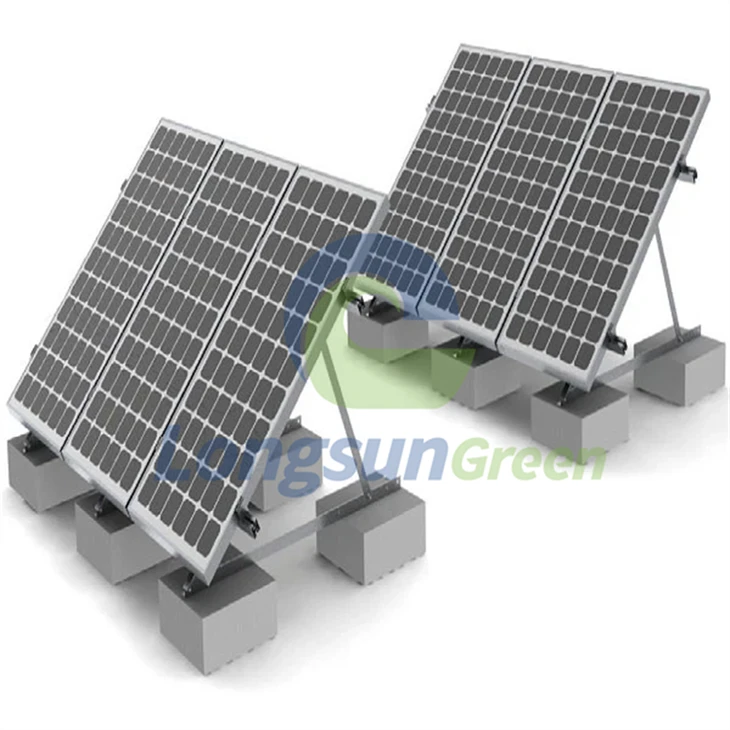

Flat Roof Solar Panel Mounting System
The Flat Roof Solar Panel Mounting System is a non-penetrating aluminum racking solution for residential and commercial flat rooftops. It supports 10° or 15° tilt angles and preserves roof waterproofing integrity.
More details please contact Amber at amber@longsungreen.com
Technical Parameters
|
Product Name |
Flat Roof Solar Panel Mounting System |
|
Material |
Anodized Aluminum |
|
Tilt Angle |
10° or 15° |
|
Max Wind Speed |
< 60 m/s |
|
Max Snow Load |
≤ 1.5 kN/m² |
|
Panel Type |
Framed or Frameless |
|
Orientation |
Horizontal / Vertical |
|
Design Standard |
AS/NZS, DIN 1055 |
|
Warranty |
12–20 Years |
|
Service Life |
≥ 20 Years |
|
Delivery |
7–15 Days |
|
Packaging |
Cartons / Iron Pallets |
|
System Components |
Rails, rail connectors, rail clamps, mid clamps, end clamps, wind shield, and ballast trays (optional). |
Product Type
Product Advantages
Non-Penetrating
No fasteners through the roof; eliminates leak risks.
Corrosion-Resistant
Anodized aluminum withstands moisture, UV, and temperature extremes.
Lightweight & High-Strength
Optimal strength-to-weight ratio reduces roof load.
Easy Installation
Simple structural design with factory-preassembled components; panels mount directly to supports.
Wide Compatibility
Fits most framed and frameless solar panels; supports horizontal or vertical orientation.
High Load Capacity
Withstands wind speeds up to 60 m/s and snow loads up to 1.5 kN/m².
Applications
Residential flat roofs
Commercial / industrial rooftops
Large-scale rooftop projects where ground space is limited
Common Problem
Does it damage waterproofing?
No. The system is non-penetrating and fully preserves the roof membrane.
What tilt angles are supported?
10° and 15°.
Compatible with frameless panels?
Yes.
Customization available?
Yes. OEM customization for size, structure, and load specifications is offered.
Why Choose Longsun Green
Precision Manufacturing – Advanced CNC machining ensures tight tolerances and seamless assembly.
ISO 9001 Quality Control – Rigorous inspections from raw materials to finished products.
ERP Warehousing – Semi-automated system with barcode traceability; daily shipment capacity > 8,000 units.
Project References
Single-post PV project, United States
Sunroom PV project, Europe
Roof-mounted PV project, Australia
Agricultural PV project, Japan
Agriculture PV mount, Austrian
Carport mounting structures, Europe
Ground mount structure, Southeast Asia
Ground-mounted solar racking, Italy
