Products Description

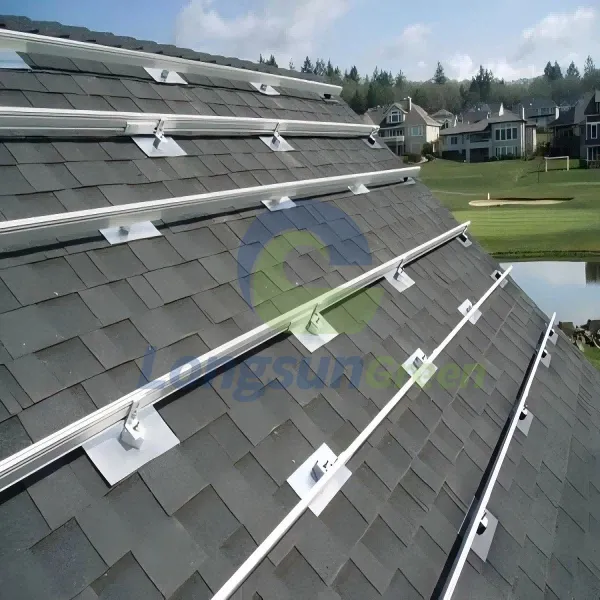

Waterproof Asphalt Roof Solar Pv Metal Mounting Flashing Kit
The Waterproof Asphalt Roof Solar PV Metal Mounting Flashing Kit is a specialized solution designed for mounting solar panels on asphalt shingle roofs while ensuring a watertight seal. This Waterproof Asphalt Roof Solar PV Metal Mounting Flashing Kit combines durable materials, intelligent pre-assembly, and reliable weather resistance. Whether for residential or small commercial projects, this Waterproof Asphalt Roof Solar PV Metal Mounting Flashing Kit delivers long-lasting performance and easy installation.
More details please contact Amber at amber@longsungreen.com
Technical Parameters
|
Product Name |
Waterproof Asphalt Roof Solar PV Metal Mounting Flashing Kit |
|
Installation Site |
Asphalt / Composition Shingle Roof |
|
Material |
Aluminum AL 6005-T5 & Stainless Steel SUS 304 |
|
Surface Color |
Black/Silver (Customized available) |
|
Max Wind Resistance |
60 m/s |
|
Max Snow Load |
1.4 kN/m² |
|
Applicable Standards |
JIS, AS/NZS 1170.2 |
|
Kit Components |
Flashing Plate, L Kit, Rubber Pad, Screws |
|
Key Advantages |
Watertight seal, easy assembly, corrosion resistance, 15-year warranty |
|
Customization Service |
OEM supported; engineering design based on local geology, wind, and snow loads |
Product Advantages
Waterproof Integrity: The flashing plate and rubber pad work together to prevent water penetration around roof penetrations, protecting the asphalt shingle structure from leaks.
Durable Materials: Manufactured with AL 6005-T5 aluminum and SUS 304 stainless steel for high corrosion resistance and structural strength.
Factory Pre-Assembly: Key components are pre-assembled to reduce on-site labor and installation time.
High Load Capacity: Tested to withstand wind speeds up to 60 m/s and snow loads up to 1.4 kN/m², suitable for diverse climate zones.
Compliance with International Standards: Meets JIS C 8955:2011 and AS/NZS 1170.2, ensuring reliable structural performance.
✅ Recommended when:
Roof type is asphalt shingle / composition shingle
Annual rainfall exceeds 800 mm
Roof pitch is between 15° and 60°
Local wind speed exceeds 40 m/s
Client requires no sealant installation
System design life is 15+ years
❌ Not recommended for:
Metal standing seam roofs (use clamp systems instead)
Flat roofs with membrane (use ballasted or penetrating-free systems)
Clay or concrete tile roofs (use tile hooks)
Roofs with active leaks or rotted decking
FAQ
01. Is this kit compatible with all asphalt shingle roofs?
02. What is included in the kit?
