Products Description
non-penetrating roof mounting system
Non-Penetrating Roof Mounting System designed for standing seam metal roofs. This Non-Penetrating Roof Mounting System allows PV installation without any roof penetration. As a direct manufacturer, Longsun Green offers a factory-assembled Non-Penetrating Roof Mounting System ready for out-of-box installation.
More details please contact Amber at amber@longsungreen.com
Technical Parameters
|
Product Name |
non-penetrating roof mounting system |
|
Installation site |
Metal rooftop |
|
Main material |
Aluminum 6005-T5 |
|
Max wind load |
45 m/s |
|
Max snow load |
1.5 kN/m² |
|
Applicable module |
Framed or frameless panels |
|
Fasten material |
SUS 304 / hot galvanized Q235 |
|
Packing |
Carton box, metal or wooden pallet |
|
Quality warranty |
10 years for all components |
|
Duration |
> 20 years |
|
Delivery time |
10-15 working days |
|
FOB port |
Xiamen, China |
Installation Guide (Brief)

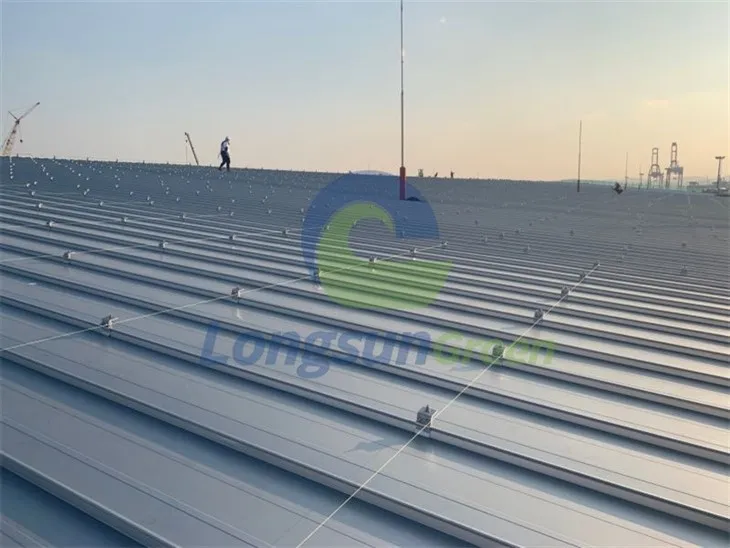

1. Fix clamp to roof beam.

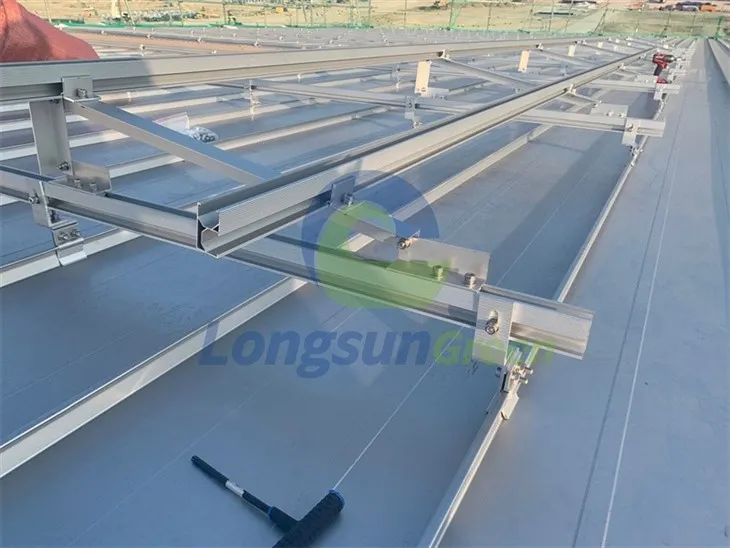

2. Fix rail to the clamp.
3. Fix panels to rail with clamps.
4. Finish installation.
Product Advantages
Non-Penetrating Design – Sliding pin design does not damage the panel or roof surface.

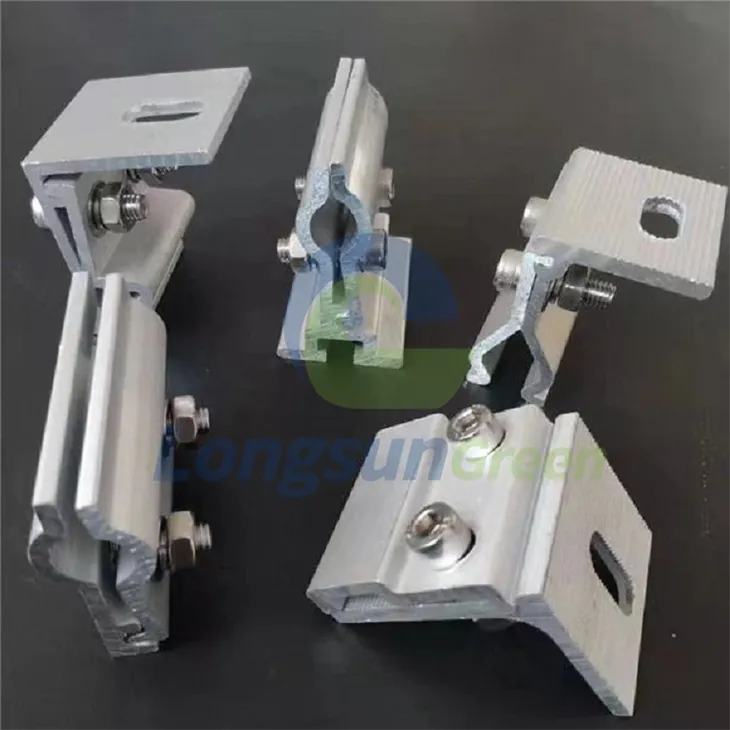

Pre-Assembled Clamp – Allows for easy installation.
Premium Materials – Aircraft quality aluminum with anti-corrosion anodized finish.
All Stainless-Steel Hardware – SUS 304 or hot galvanized steel Q235.
Versatile Clamps – Compatible with different standing seam roof types.
Time & Cost Saving – Simple design enables fast installation.
FAQ
01. Can you offer detailed instructions?
02. What is your MOQ?
03.Can I get samples?
Company Profile
in one-stop service
Factory-direct aluminum extrusion and steel processing.
Strict quality control with 10-year warranty.
ERP intelligent warehousing for fast shipment.
MW+
Project References
Single-post PV project, United States
Sunroom PV project, Europe
Roof-mounted PV project, Australia
Agricultural PV project, Japan
Agriculture PV mount, Austrian
Carport mounting structures, Europe
Ground mount structure, Southeast Asia
Ground-mounted solar racking, Italy
