Solar Panel Grounding Lugs

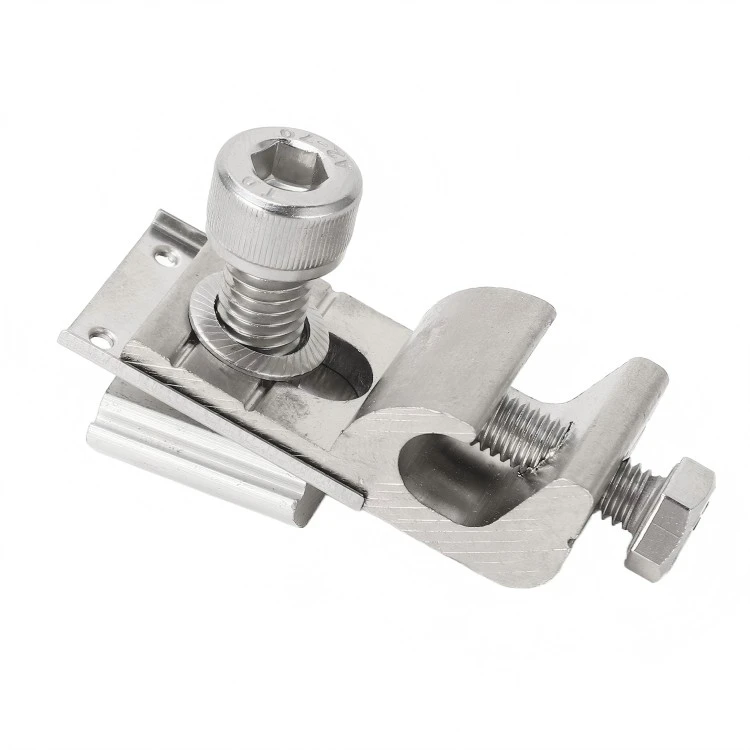

Solar panel grounding lugs are typically a metal connector, usually made of copper or aluminum due to their good electrical conductivity. It has a simple yet practical structure, generally consisting of a barrel part and a connection part. The barrel is designed to hold and connect the grounding wire. It may have a crimping or bolting mechanism to ensure a secure connection with the wire. The connection part is used to attach the lug to the grounding point on solar equipment, such as the frame of a solar panel or the casing of an inverter. This part often has holes or slots that allow for easy attachment using nuts, bolts or other fastening methods.

Gather necessary tools and materials

Solar grounding lug: Make sure it is suitable for the wire size and voltage level of your solar system.

Wires: Typically, copper wires are used for grounding. The wire gauge should comply with local electrical codes.

Tools: You'll need wire cutters, wire strippers, a torque wrench, and possibly a crimping tool depending on the type of lug.

Prepare the wires

Measure and cut: Measure and cut the grounding wire to the appropriate length. Leave enough slack to allow for easy connection and to account for any movement or expansion.

Strip the wire ends: Use wire strippers to remove the insulation from the ends of the grounding wire. The length of the stripped portion should match the depth of the lug's wire barrel.

Connect the wire to the grounding lug

Insert the wire: Insert the stripped end of the grounding wire into the barrel of the solar grounding lug. Make sure the wire is fully inserted and sits snugly inside.

Crimp or bolt the connection:

Crimping: If the lug is a crimp type, use a suitable crimping tool to compress the barrel of the lug around the wire. Apply the correct amount of force to ensure a secure and reliable connection.

Bolting: Some lugs have a bolt or screw mechanism. Place the wire in the appropriate position and tighten the bolt or screw using a torque wrench to the specified torque value. This ensures the connection is tight without over-tightening and damaging the wire or lug.

Install the grounding lug

Locate the grounding point: Identify the appropriate grounding point on the solar panel frame, inverter, or other equipment. This is usually a designated hole or terminal marked for grounding.

Attach the lug: Place the grounding lug over the grounding point and secure it using the provided hardware, such as nuts and bolts. Tighten the hardware to the recommended torque to ensure a good electrical connection.

Verify the connection

Visual inspection: Check that the wire is properly inserted into the lug and that the lug is securely attached to the grounding point. There should be no visible signs of looseness or damage.

Continuity test: Use a multimeter to perform a continuity test. Set the multimeter to the ohm scale and touch one probe to the grounding lug and the other to the grounding electrode or the main grounding bus. The reading should be close to zero ohms, indicating a good electrical connection.

Safety and compliance checks

Check for proper grounding: Ensure that the entire solar system is properly grounded according to local electrical codes and safety standards. This includes checking that all metal components of the solar installation are connected to the grounding system.

Inspect for damage: Regularly inspect the grounding lug and wire for any signs of damage, corrosion, or looseness. If any issues are found, repair or replace the components immediately.
