Products Description
Solar panel mounting systems for metal roofs
LongsunGreen is a professional manufacturer of high-quality solar mounting solutions for metal roofs. Our product line includes hanger-bolt systems, railless mounting systems, and universal metal roof mounting structures-all engineered to meet international standards and deliver reliable performance for trapezoidal, corrugated, and standing seam metal roofs.
More details please contact Amber at amber@longsungreen.com
Hanger-Bolt Mounting System
This metal roof solar mounting system uses M10/M12 stainless steel hanger bolts to securely attach PV modules to trapezoidal and corrugated metal roofs.
|
Standards |
ASCE 7, Eurocode, JIS8955-2017, GB, NSCP2015 |
|
Bolt Lengths |
180/200/250/300 mm (custom available) |
|
Material |
SUS304 / AL6065-T5 |
|
Warranty |
15 years |
Key Advantages
Strong pull-out resistance for solar panel mounting systems on metal roofs.
Corrosion-resistant SUS304 ensures durability in coastal and humid environments.
Adjustable bolt lengths suit various roof profiles and insulation layers.
Quick installation with standard tools reduces on-site labor.
Components: Hanger bolts with sealing washers, mounting brackets, end clamps, and mid clamps.

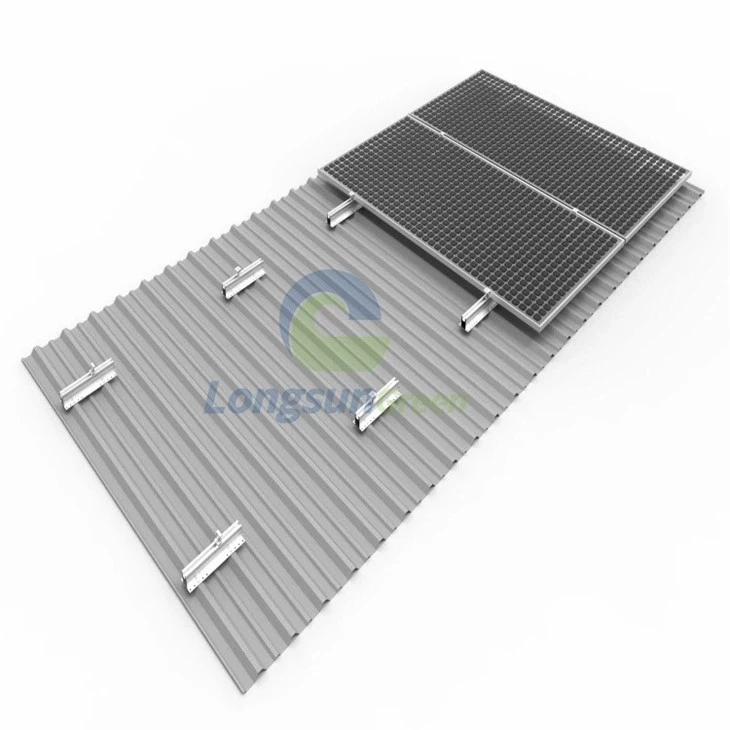

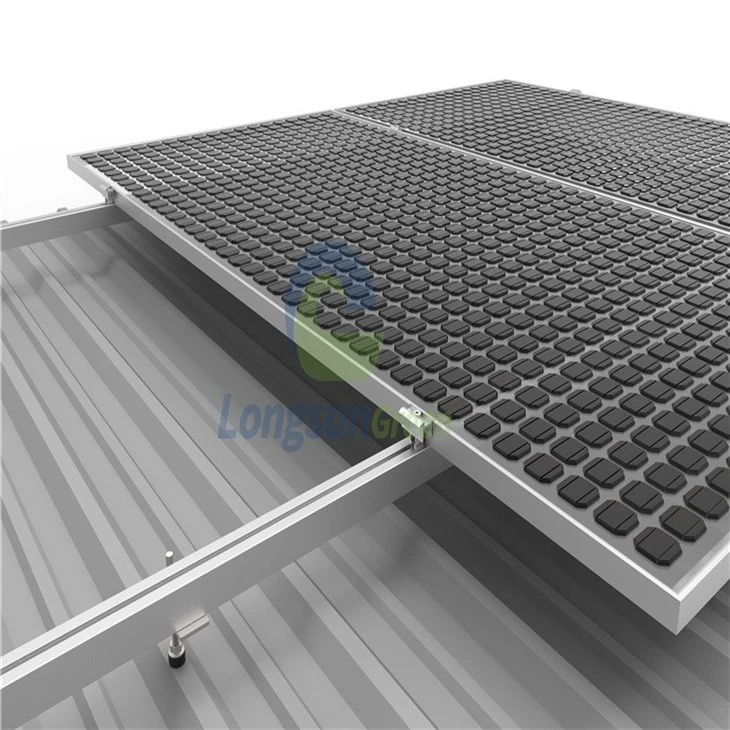

Mini Rail Mounting System
A cost-effective solar panel mounting solution for metal roofs that eliminates long rails, cutting material costs and installation time.
|
Standards |
ASCE 7, Eurocode, JIS8955-2017, GB, NSCP2015 |
| Length | Customized per project |
|
Material |
SUS304 / AL6065-T5 |
|
Warranty |
15 years |
Key Advantages
Railless design reduces weight and speeds up solar metal roof mounting.
Direct clamping works efficiently on trapezoidal and corrugated metal sheets.
High-strength aluminum and stainless steel options for diverse site conditions.
Minimal roof penetration preserves waterproofing integrity.
Components: Direct-mount clamps, T-shape clamps, non-penetration clamps, rail connectors, and optional end/inner clamps.

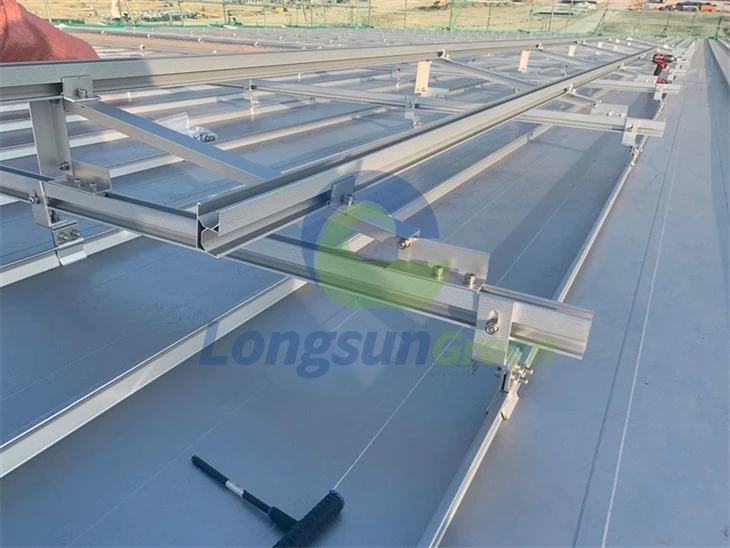

Universal Metal Roof Mounting System
A versatile solar panel mounting system compatible with most metal sheet roofs, offering adjustable tilt and high load resistance.
|
Standards |
ASCE 7, Eurocode, JIS8955-2017, GB, NSCP2015 |
|
Tilt Angle |
5–45° |
|
Material |
AL6005-T5 / SUS304 |
|
Wind Load |
60 m/s |
|
Snow Load |
1.6 kN/m² |
|
Color |
Silver or customized |
|
Warranty |
15 years |
Key Advantages
Universal fit for trapezoidal, corrugated, and standing seam metal roofs.
Non-penetration clamping avoids roof damage and maintains weatherproofing.
Adjustable tilt angles optimize solar energy yield across different latitudes.
Engineered for extreme wind and snow conditions, ensuring long-term stability.

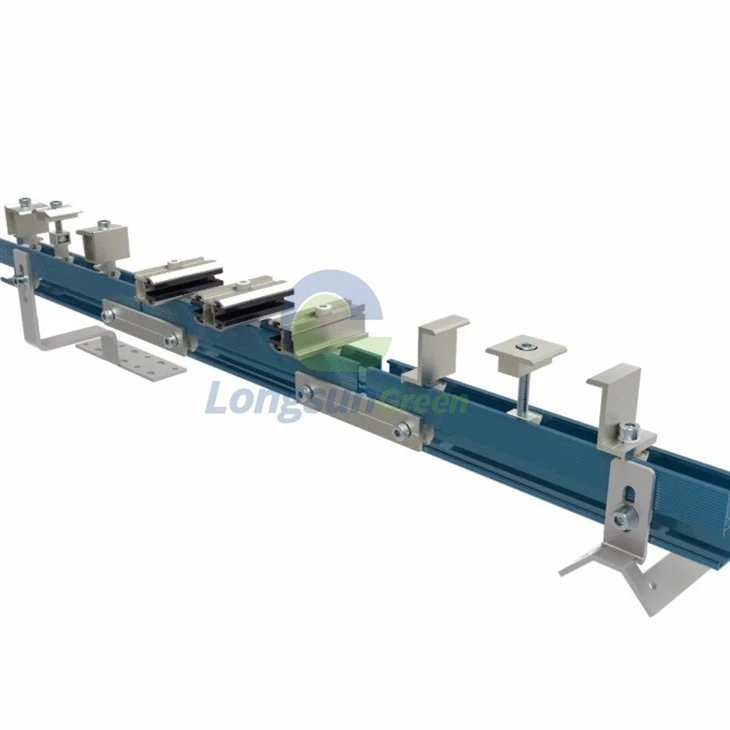

Components: L-feet (type 1, 2, with rail), T-shape clamps (type 1, 2, 3), non-penetration clamps (type 1, 2), W-shape clamp, rail connectors, rails with end clamps, and rails with inner clamps.
Applications
Rooftop PV systems on industrial, commercial, and agricultural metal roofs.
Building-integrated solar for new construction and retrofit projects.
Coastal and high-wind areas requiring corrosion-resistant solar metal roof mounting.
FAQ
01.Which metal roofs are compatible?
02.Can I customize lengths or colors?
Company Profile
in one-stop service
Precision Manufacturing
Strict Quality Control
15-Year Warranty
MW+
Project References
Single-post PV project, United States

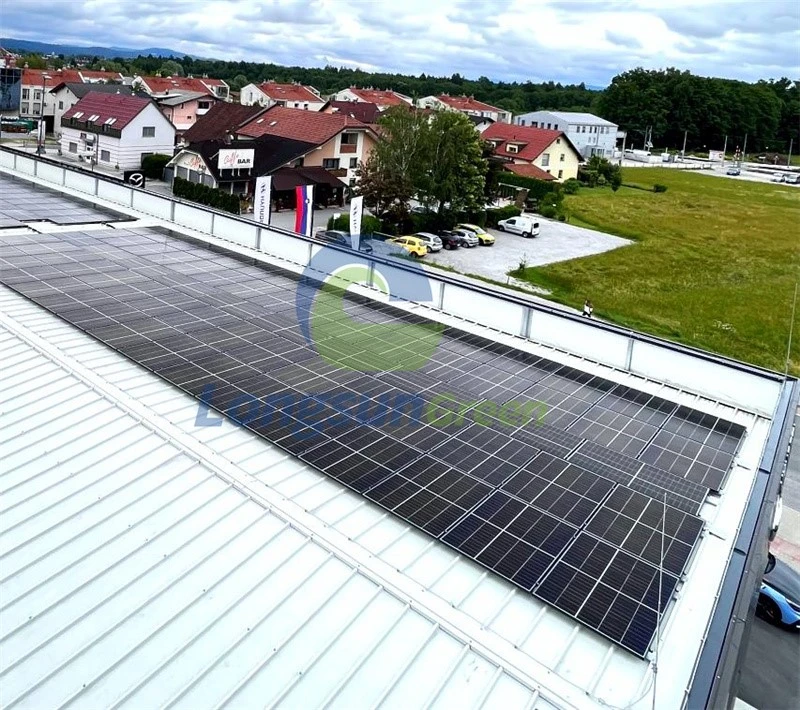

Sunroom PV project, Europe
Roof-mounted PV project, Australia
Agricultural PV project, Japan
Agriculture PV mount, Austrian
Carport mounting structures, Europe
Ground mount structure, Southeast Asia
Ground-mounted solar racking, Italy
